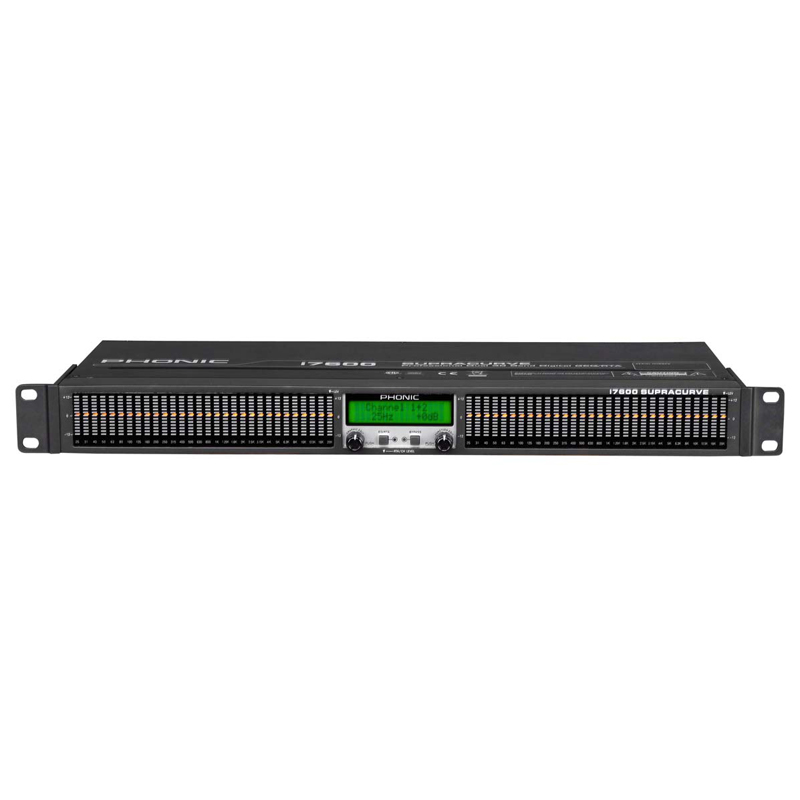

Phonic's i7600 SUPRACURVE combines the best features of a digital equalizer and a real-time spectrum analyzer (RTA) into one rack space unit. Dual 30 x 13-segment LED chains provide clear and immediate frequency setting displays. Additionally, each EQ section can be bypassed for quick comparison between the processed and unprocessed sounds.

Dual 30-Band 1/3 Octave Digital Graphic Equalizer with RTA

• Doubles as dual-channel 30-band real-time spectrum analyzer (RTA)
• 24-bit A/D and D/A converters with 256/512 times over sampling for high headroom and resolution
• Internal 32-bit/44.1 KHz processor
• Provides 12 dB of boost or cut
• Channel-link function
• Stores up to 60 programs: 30 factory-set, 30 user-defined
• Selectable unit of measurement for RTA line signal: dBu or dBV
• Six view range options for band-level measurement
• Six response time options
• Peak-hold options: permanent and none
• Three weighting options: A weighting, C weighting, and flat
• Pink noise generator outputs balanced test signals at 0 dB
• Bypass function
• Variable low-pass filter (LPF) and high-pass filter (HPF)
• Balanced XLR and 1/4" TRS inputs and outputs
• Operating levels of +4 dBu and -10 dBV independently selectable for input and output
• 780 bright LED indicators
• Rack mountable in one rack-space chassis
