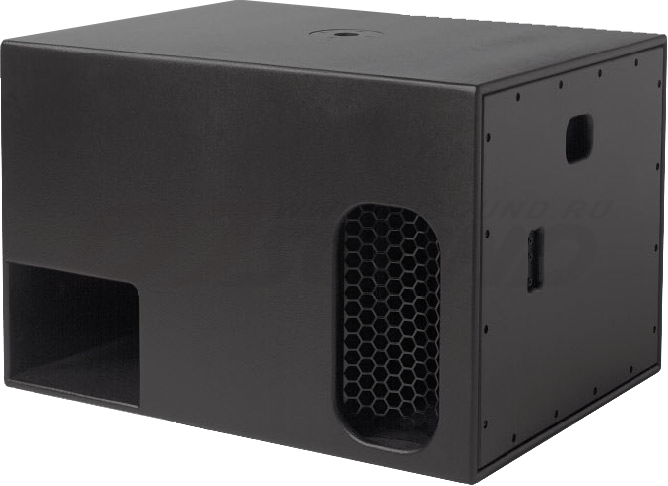

Nexo LS1200

HIGH PERFORMANCE SUBBASS
The LS1200 Subwoofer extends the usable range of a PS15 System to 29Hz, providing high performance and high power output (135dB Peak) in a compact, light weight package.

The PS15 TDcontroller's integral sub section and combined signal (PS15 and LS1200) Speakon wiring ensures cost effective and simple system implementation. One LS1200 is typically used with 2x PS15 loudspeakers. Additional units may be used for an enhanced effect.

Thành phần loa : VLF 1 x 18" ( 46cm ) long excursion 6Ω driver
Cao x Rộng x Sâu 515 x 791 x 597 mm (20.25" x 31.13" x 23.5" )
Khối lượng 45 kg (99 lbs) net
Chuẩn kết nối 2 x NL4MP SPEAKON 4 pole
Construction Baltic Birch Ply & textured, polyurethane black coating
Fittings:  HandlesFront finishFlying Points Stand fittings  2, integral to cabinetPerforated steel grilles3 steel anchor points for flying tracks on side and backStand Fitting on Top (35mm, 1 3/8") accepts a mast supporting 1 PS15.
THÔNG SỐ KỸ THUẬT HỆ THỐNG  LS500 Với PS10 TD Controller
Tần số đáp tuyến 30 Hz - 120 Hz ±3dB
Usable Range 29 Hz - 130 Hz
Độ nhạy 1W @ 1m [b] 102 dB SPL Nominal
Nominal Peak SPL @ 1m [b] 133 to 135 dB Peak (800 to 1200 W RMS Amp.)
Crossover Frequencies 80 Hz Active through PS15TD
Nominal Impedance
Recommended Amplifiers 800 to 1200 Watts into 4Ω
SYSTEM OPERATION
Electronic Controller The LS1200 Subwoofer must be used with a Nexo Controller (PS15 TD MkII analogue or NX241 digital). Use without a properly connected Controller will result in poor sound quality and may damage the components.
SubBass The LS1200 Subwoofer provides optional VLF extension for PS15 Loudspeakers. Active two-way operation with the PS15 is included in the PS15TD MkII, or NX241.
Dây Cáp loa The PS15 is wired 2- & 2+ on Speakon connectors, LS1200 on 1- & 1+. Loop through Speakons are present on both products. Single identical cables can thus be used to loop through combinations of up to 2 x PS15 (passive mode) & 1 x LS1200 in no particular order.
