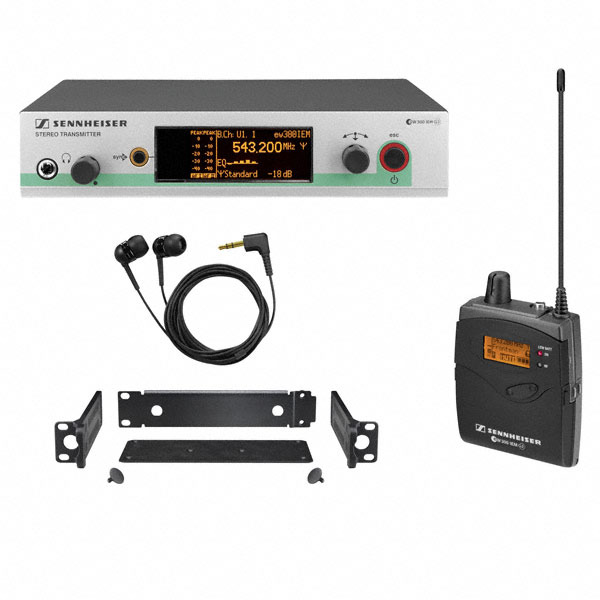

Micro Sennheiser EW300 IEM-G3
Thông tin sản phẩm
Sturdy metal housing (transmitter and receiver
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 16 compatible frequencies
Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
Adaptive diversity for high reception quality
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of receiver parameter from transmitter
User-friendly menu operation with more control options
Illuminated graphic display
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Receiver feature battery indicatation in 4 steps
Mute function for transmitter
Integrated 5-band graphic Equalizerin transmitter
HiBoost, adjustable limiter, stereo/focus mode, balance in receiver
Contacts for recharging BA 2015 accupack directly in the receiver
Wide range of accessories adapts the system to any requirement
ency range | 780...822 MHz / Power supply unit EU/Germany |
---|---|
823...865 MHz / Power supply unit EU/Germany | |
516...558 MHz / Power supply unit UK | |
626...668 MHz / Power supply unit UK | |
734...776 MHz / Power supply unit UK | |
780...822 MHz / Power supply unit UK | |
823...865 MHz / Power supply unit UK | |
566...608 MHz / Power supply unit UK | |
606...648 MHz | |
516...558 MHz / Power supply unit US | |
626...668 MHz / Power supply unit US | |
734...776 MHz / Power supply unit US | |
566...608 MHz / Power supply unit US | |
780...822 MHz / Power supply unit EU | |
516...558 MHz / Power supply unit EU | |
626...668 MHz / Power supply unit EU | |
734...776 MHz / Power supply unit EU | |
823...865 MHz / Power supply unit EU | |
566...608 MHz / Power supply unit EU | |
Compander | HDX |
Audio-XLR connector | 2 x XLR-3 jack |
Presets | 16 |
Frequency response | 25 - 15000 Hz |
THD, total harmonic distortion | < 0,9 % |
Signal-to-noise ratio | > 90 dB(A) |
RF frequency range | 516...865 MHz |
RF output power | 10/30 mW |
Transmission/receiving frequencies | 1680 |
Switching bandwidth | 42 MHz |
Peak deviation | +/- 48 kHz |
In compliance with | ETS 300422, ETS 300445, CE, FCC |
Operating time | 4 - 6 h |
Modulation | FM, MPX-stereo |
Antenna connector | BNC |
Headphone connector | > 100mW (32 Ω) |
Input voltage range | + 22 dBu max |
Audio-Output-Power | 100 mW (32 Ω) |
Operating voltage (stand alone) | 12 V DC nom |
