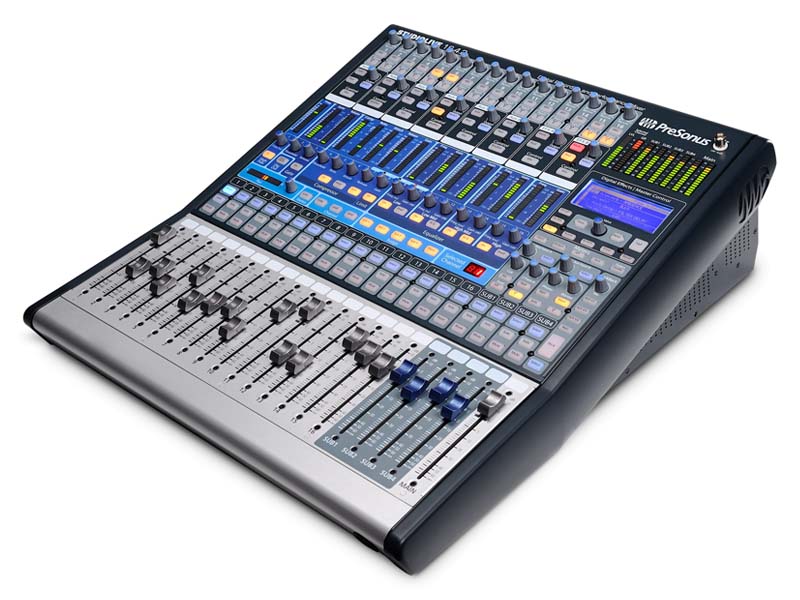

Âm thanh chuyên nghiệp: PRESONUS STUDIO LIVE 16.4.2

Giỏ hàng

Giỏ hàng trống

Tin tức & Sự kiện

Âm thanh ánh sáng Lâm Đồng tổ chức sự kiện ca nhạc
Một số hình ảnh Âm thanh ánh sáng Lâm Đồng tổ chức sự kiện ca nhạc
Dịch vụ cho thuê màn hình led, nhà bạt, dù che sự kiện
Dịch vụ cho thuê màn hình led, nhà bạt, dù che sự kiện tại Lâm Đồng
Âm Thanh Ánh Sáng Lâm Đồng tham gia tổ chức sự kiện 2018
Một số hình ảnh công ty Âm Thanh Ánh Sáng Lâm Đồng đã tham gia tổ chức sự kiện nổi bật tại khu vực Lâm Đồng và các tỉnh lân cận năm mới 2018
Cho thuê màn hình LED
Cho thuê màn hình LED sân khấu với số lượng lớn với nhiều chủng loại từ màn hình chất lượng cao, độ phân giải sắc nét lắp đặt nhanh chóng chuyên nghiệp tại Âm...

Đang có 152 khách và không thành viên đang online

Thông Tin Sản Phẩm

16 mic/line inputs with high-headroom Class A XMAX™ mic preamplifiers
4 subgroups
Stereo/mono main out
6 auxiliary mixes
32-in/18-out FireWire digital recording interface (24-bit/44.1 kHz and 48 kHz)
Studio One Artist Digital Audio Workstation software for Mac® and PC
Capture™ 1.1 recording software for Mac® and PC
StudioLive Remote mixer-control software for iPad® available free from Apple App Store
QMix™ aux-control software for iPhone® and iPod touch® available free from Apple App Store
Direct recording interface compatible with Logic®, Nuendo, Cubase, Sonar™, Digital Performer™, Ableton™ Live, and more
16 channel strips
Trim control with –20 to +20 dBV line/-15 to +65 dBu mic gain range (80dB!)
+48V phantom power switch for condenser microphones
FireWire Input Select
100 mm precision faders
Lighted Solo and Mute buttons
Access to Fat Channel functions
15-LED ladder metering + clip LED
Analog ¼" insert (rear panel)
4 subgroup buses, each with:
- Solo
- Mute
- Access to Fat Channel functions (except high-pass filter and phase reverse)
6 aux sends, each with
- Solo
- Pre/post-fader send
- Output-level control
- Access to Fat Channel functions (except phase reverse)
- Mix and Mix/Pan Fat Channel metering
- Available sources: Channels 1-16, FXA Return, FXB Return
2 internal effects sends, each with:
- Mute
- Pre/post-fader send
- Output-level control
- Access to Fat Channel (except phase reverse)
- Effects-send Select for Fat Channel metering
- Mix button for aux-bus mixing and Fat Channel metering
Master Section
- Aux Input A and B
- Level Control and Select (Fat Channel metering) switch
- Access to all Fat Channel functions (except phase reverse)
- Talkback System
  - Mic Level control
  - Output Select ( Aux 1-2, 3-4, 5-6, Main)
  - Talk button
  - Rear-panel XLR mic input with level control and continuous 48V phantom power
- 2 Track In
  - Level control
  - Tape Input to Mains button
  - FireWire source on/off
- Solo Bus
  - Cue Mix volume control
  - PFL/AFL and Solo In Place (SIP) buttons
- Monitor Bus
  - Headphone-output level control
  - Control-room monitor-level control
  - Solo Bus to Monitor button
  - Tape Input to Monitor button
  - Main L/R FireWire Return to Monitor button
  - Main Mix to Monitor button

Fat Channel with rotary encoders:2 internal digital effects-processors, each with 50 customizable reverb and delay presets
- Pan with dedicated 15-LED display
- Stereo link for input channels, aux buses, and subgroups
- Phase reverse (main channels only)
- High-pass filter: 6 dB/oct., sweepable from Off to 1 kHz (main channels and aux's only)
- 4-band semi-parametric equalization
  - Low EQ: sweepable from 36 Hz to 465 Hz, ±15 dB, switchable shelf or peaking
  - Low Mid EQ: sweepable from 90 Hz to 1.2 kHz, ±15 dB, switchable 0.55/2.0 Q
  - High Mid EQ: sweepable from 380 Hz to 5 kHz, ±15 dB, switchable 0.55/2.0 Q
  - High EQ: sweepable from 1.4 kHz to 18 kHz, ±15 dB, switchable shelf or peaking
- Gate: Threshold 0 to –84 dB; Rate: 2 to 0.05 sec
- Compressor: Threshold -56 to 0 dB, Ratio 1:1 to 14:1, Attack 0.2 to 150 ms, Release 40 to 1000 ms, Makeup Gain 0 to 28 dB, Soft Knee switch, Auto Mode with 10 ms Attack and 150 ms Release
- Limiter: 0 dBFS Threshold, ∞:1 Ratio
- Output Assign: 4 subgroups and main with post-EQ/post-dynamics option
- All settings can be copied among channels and saved as user presets.
- 50 channel-strip presets for drums, bass, guitars, keyboards, and vocals
4 dual-mono (eight channels), 31-band graphic equalizers, each assigned to a specific bus: Main Left, Main Right, and Aux 1 through 6
Scene Store and RecallLockout mode to keep inspired amateurs from changing your settings
- Global Scene Storage: all current StudioLive settings
  - Up to 80 at a time
- Automatic Global AutoStore
- Individual channel-strip Scene storage
  - Up to 48 at a time, plus…
  - 50 factory presets for instruments and vocal
- Copy and Paste between channels
- Customizable naming (for example, "Saturday Gig" or "Main Worship Service")
Metering/Displays
- 16 x 16- LED Fat Channel matrix:
  - Pre-dynamics/pre-fader input
  - Post-dynamics/post-fader output
  - Gain reduction
  - Aux 1-6 and EFX A/B output
  - Fader-position recall
- 8 x 15-LED main meter bank
  - Selected channel level
  - Selected channel gain reduction
  - Sub buses 1 to 4
  - Main stereo outputs
- 15-LED horizontal Pan/Balance display
- 64 x 194 LCD matrix
  - Effects parameters
  - Scene creation, storage, and recall
  - System menus
- 2-digit Channel Selected display
Input/Output
- 16 main inputs, each with XLR mic, ¼" line, and ¼" inserts
- 2 ¼" stereo (L/R) aux inputs
- 1 XLR talkback-mic input with phantom power and level control
- Unbalanced RCA stereo (L/R) tape inputs and outputs
- XLR stereo (L/R) main outputs with level control
- ¼" stereo (L/R) main outputs
- XLR mono output with level control
- ¼" stereo (L/R) control-room outputs
- ¼" Headphone output
- 4 ¼" subgroup outputs
- 6 ¼" aux outputs
- 16 pre-insert, balanced direct outputs, Ch. 1-8 and 9-16 (DB25 sockets)
- S/PDIF digital out
- 2 FireWire 400 ports
Digitalia
- High-definition analog-to-digital converters (118 dB dynamic range)
- Unlimited-headroom, 32-bit floating point, digital mixing and effects processing
- Internal sample frequency 44.1 kHz and 48 kHz
Physical
- Rugged, non-flex steel chassis
- 100 mm long-throw faders
- Military-grade, quick-touch buttons
- BNC 12V lamp socket
- Optional dust covers available
Software bundle for Mac® and Windows® includes:
- PreSonus Studio One® Artist digital audio workstation
- PreSonus Capture™ live-recording software
- PreSonus Universal Control with Virtual StudioLive™ bidirectional mixer-control software
- Free downloadable software from the Apple App Store provides wireless remote control, including:
  - PreSonus StudioLive Remote for iPad®
  - PreSonus QMix™ for iPhone® and iPod touch
