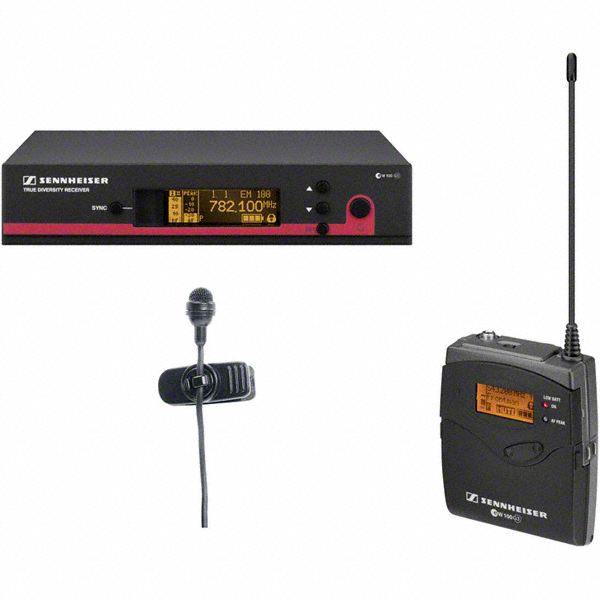

Sennheiser Micro Cài Áo EW122-G3
Thông tin sản phẩm
Sturdy metal housing (transmitter and receiver
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 12 compatible frequencies
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of transmitters via infrared interface
User-friendly menu operation with more control options
Illuminated graphic display (transmitter and receiver)
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter feature battery indicatation in 4 steps, also shown on receiver display
Programmable Mute function
Integrated Equalizer and Soundcheck mode
Contacts for recharging BA 2015 accupack directly in the transmitter
Wide range of accessories adapts the system to any requirement
ncy range | 606...648 MHz |
---|---|
823...865 MHz / Power supply unit UK | |
823...865 MHz / Power supply unit EU/Germany | |
823...865 MHz / Power supply unit EU | |
780...822 MHz / Power supply unit UK | |
780...822 MHz / Power supply unit EU/Germany | |
780...822 MHz / Power supply unit EU | |
734...776 MHz / Power supply unit UK | |
734...776 MHz / Power supply unit US | |
734...776 MHz / Power supply unit EU | |
626...668 MHz / Power supply unit UK | |
626...668 MHz / Power supply unit US | |
626...668 MHz / Power supply unit EU | |
566...608 MHz / Power supply unit UK | |
566...608 MHz / Power supply unit US | |
566...608 MHz / Power supply unit EU | |
516...558 MHz / Power supply unit UK | |
516...558 MHz / Power supply unit US | |
516...558 MHz / Power supply unit EU | |
Frequency response (microphone) | 80 - 18000 Hz |
Compander | HDX |
Audio-XLR connector | 6,3 mm |
Presets | 20 |
Microphone | electret |
Sound pressure level (SPL) | 120 dB(SPL) max. |
THD, total harmonic distortion | < 0,9 % |
AF sensitivity | 40 mV/Pa |
Signal-to-noise ratio | > 110 dB(A) |
RF frequency range | 516...865 MHz |
RF output power | 30 mW |
Transmission/receiving frequencies | 1680 |
Switching bandwidth | 42 MHz |
Peak deviation | +/- 48 kHz |
In compliance with | ETS 300422, ETS 300445, CE, FCC |
Antenna connector | 2 BNC, 50 Ω |
Input voltage range | 1,8 V line |
Audio output level | unbalanced:Jack : +12 dBu max |
balanced: XLR : +18 dBu max | |
Battery Specification | 2 x 1,5V AA |
