Sennheiser Micro Không Dây (dùng cho nhạc cụ) XSW 72
Thông tin sản phẩm

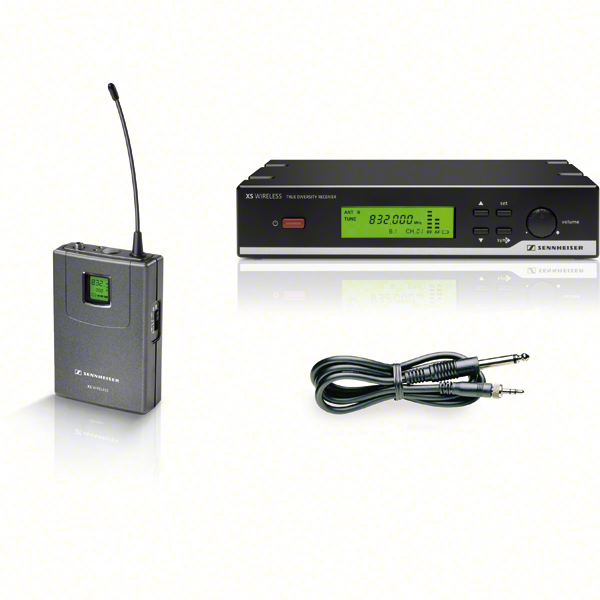

Compact bodypack system with 1/4" instrument cable. Transmitter features an illuminated mute button, 10 hours of operation, and 960 tunable frequencies. All-metal, True Diversity receiver includes 1/4" unbalanced output, and onboard scan and sync functions that ensure trouble-free operation. Rugged, reliable and easy-to-use, XS Wireless delivers renowned Sennheiser sound to small venues or houses of worship.
Directly connects to ¼” (6.3 mm) sockets
Outstanding sound quality
Mute button for full speech control
Synchronization via RF remote channel
Frequencies tunable in steps of 25 kHz
24 MHz bandwidth
8 frequency banks with each max 12 presets
| 821...832 MHz / 863...865 MHz | 504932 |
| 548...572 MHz | 504930 |
| 766...790 MHz | 504931 |
| 614...638 MHz | 504929 |
| 606...630 MHz | 504928 |
| 548...865 MHz | |
| Presets | 12 |
|---|---|
| THD, total harmonic distortion | < 1 % |
| Signal-to-noise ratio | > 103 dB(A) |
| Transmission/receiving frequencies | 960 (520 in range E) |
| Switching bandwidth | 24 MHz (13 MHz in range E) |
| In compliance with | ETS 300422 , ETS 300445 , CE , FCC |
Receivers
| Dimensions | 200 x 127 x 42 mm |
|---|---|
| Weight | ~ 730 g |
| Antenna connector | 2 BNC, 50 Ω |
| Audio output level (balanced) | XLR : +14 dBu max |
| Audio output level (unbalanced) | Jack : +8 dBu max |
| Diversity reception | True Diversity |
Transmitter
| Dimensions | 96 x 66 x 24 mm |
|---|---|
| Frequency response | mic.: 100 - 16000 Hz |
| line: 60 - 16000 Hz | |
| Weight | ~ 95 g |
| RF output power | typ. 10 mW |
| Operating time | 10 h |
| Input voltage range | mic.: 0,5 Vrms |
| line: 1,8 Vrms | |
